Multi Colored PET Braided Expandable Sleeving / Cable Sleeve / Network Cable Wire Sheath
PET Expandable Braided Cable Sleeving is one of the best looking and most diverse wire management solutions available. Here you'll find everything from our general purpose PET wrap to our fiberglass sleeving for high temperature industrial applications.
Feature of Electrical PET Expandable Braided Sleeving
* Material: Polyester
* Color: Black,Red,Blue,Pink,Yellow,Green, etc
* Usage: The protection of wire and Tightening up, for computer power cord, audio-video, automotive, aviation , wire and cable industries
* Feature: Excellent flexibility, Easy bending, Simplify operation, Good scalability, Resilience and Abrasion resistance. PET expandable braided sleeving
* Fire rating: VW-1
* Nominal temperature): -50 °C~+125 °C±5°C
* Melting point: 230°C±5°C
* Product quality: pass relative testing
| Physical Properties |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 28 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |

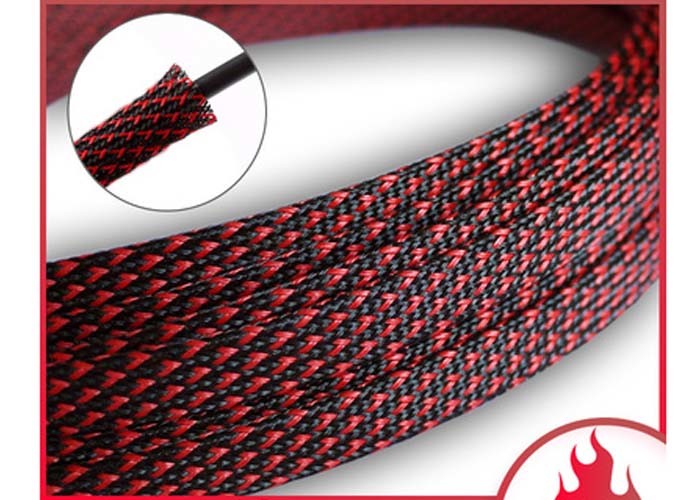

pictures of Electrical PET Expandable Braided Sleeving
